How to use winkfp

Posted by supervisor 20/11/2016 0 Comment(s)


In this post we will show you how to use WinKFP!

This WinKFP job was after FRM3 repair/reflash by Xprog that we did in previous post!

After FRM3 was repaired like in our FRM3 repair post, then need to flash the correct software in FRM3 module.
The flash can be done with WinKFP, and in 2 ways.
Comfort mode and develop mode!
The develop flash mode you need when the FRM3 module repair dump not exacly belongs to car, and because safety reasons winkfp not leaves to update! In that case You need to use winkfp develop mode, which allows to be flashed any kind of software in any module!

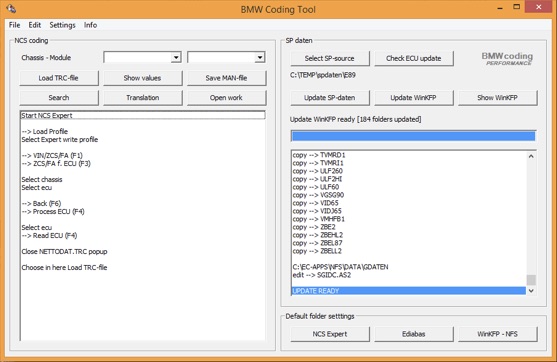

First of all need to update winkfp spdaten.

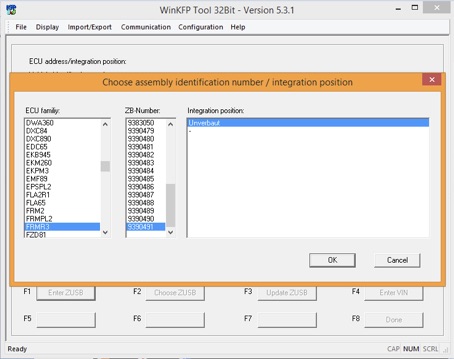

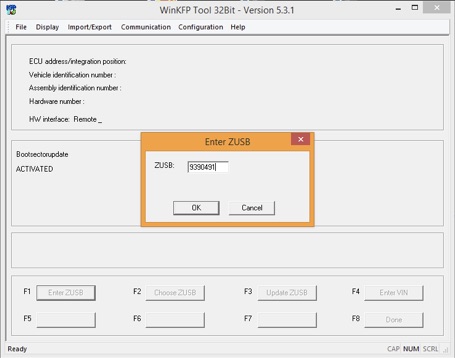

After spdaten is updated , then open the WinKFP and choose comfort mode and enter ZUSB (bmw zb, part number), will pop up one window where u will see the choosed zb number, accept it!

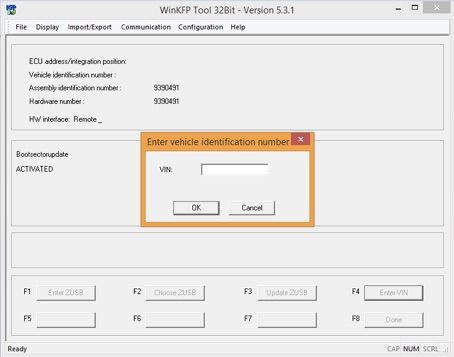

When You updating with winkfp, then need to enter the LONG vin number!
Then click done

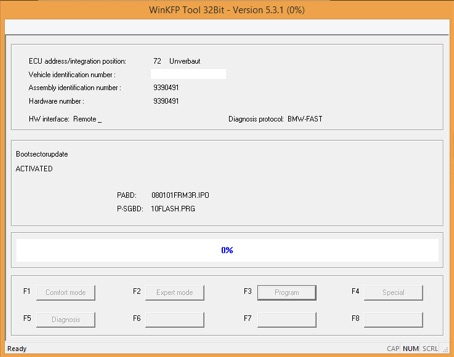

Now you can start programing!

If you getting error , to can`t update because software incompatibility, then need to do by Develop/Expert mode!

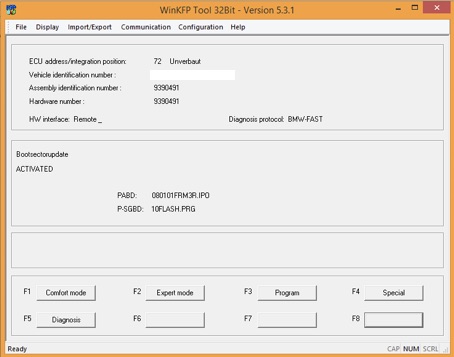

In that case note down the details like in pic 4.
Ecu address, Identification number,PABD,P-SGBD.

Now You need to copy the data file from spdaten (exx/data/module name/coresponding data file) to winkfp develop folder (c://ec-apps/nfs/data/develop)

click on expert mode and choose manually all data what u noted down,and the coresponding zb number also!

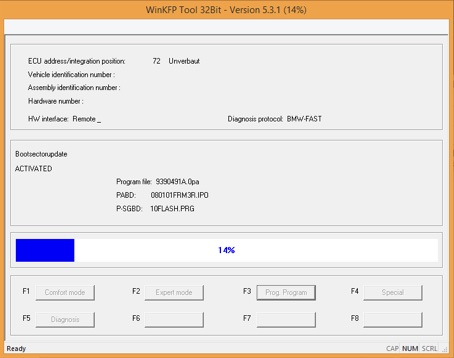

Now You can start to flash with expert mode!

winkfp also have more functions like diagnostic , check aif and so on!
If you like to change vin number in any unit, the winkfp is the easiest way!

After finished the flashing, need to recode with ncsexpert!
How to code with ncsexpert comming soon on next blog post.....
