How to use VVDI Prog to read Delphi MT60 MT80 with TRICORE

Posted by techmanager 28/03/2018 0 Comment(s)

Here's the pinout Delphi-MT60/MT80 with TRICORE shared by Xhorse VVDI Prog programmer user carcity from DK forum.

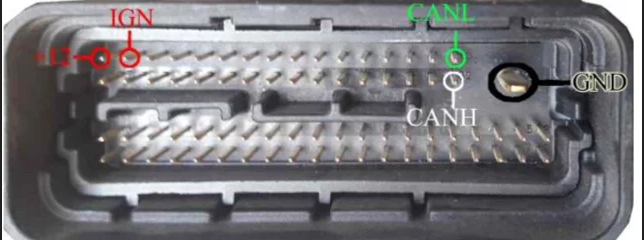

Delphi MT60/MT80

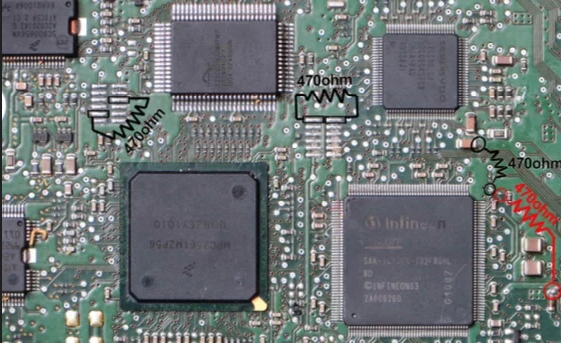

With Tricore IC

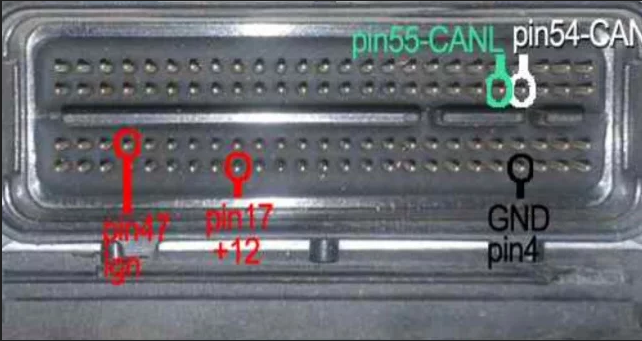

Connection by VVDI-Prog ECU cable:

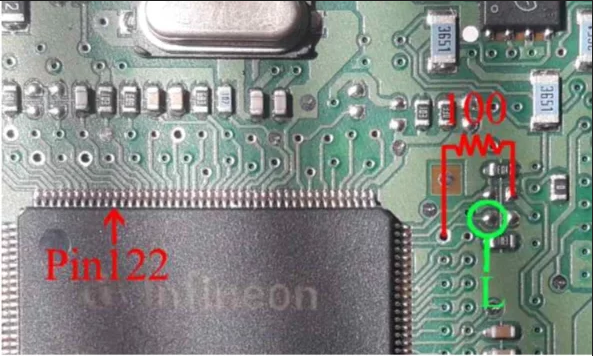

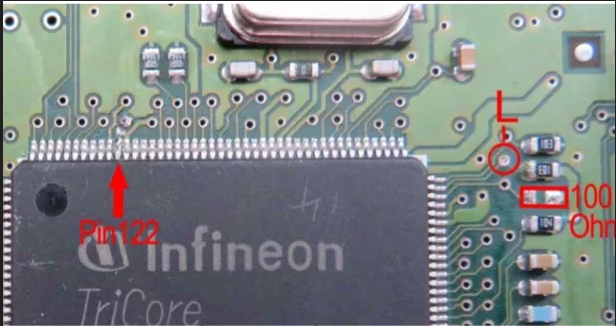

(note: unsolder PIN 122 from PCB)
→

→
→
→

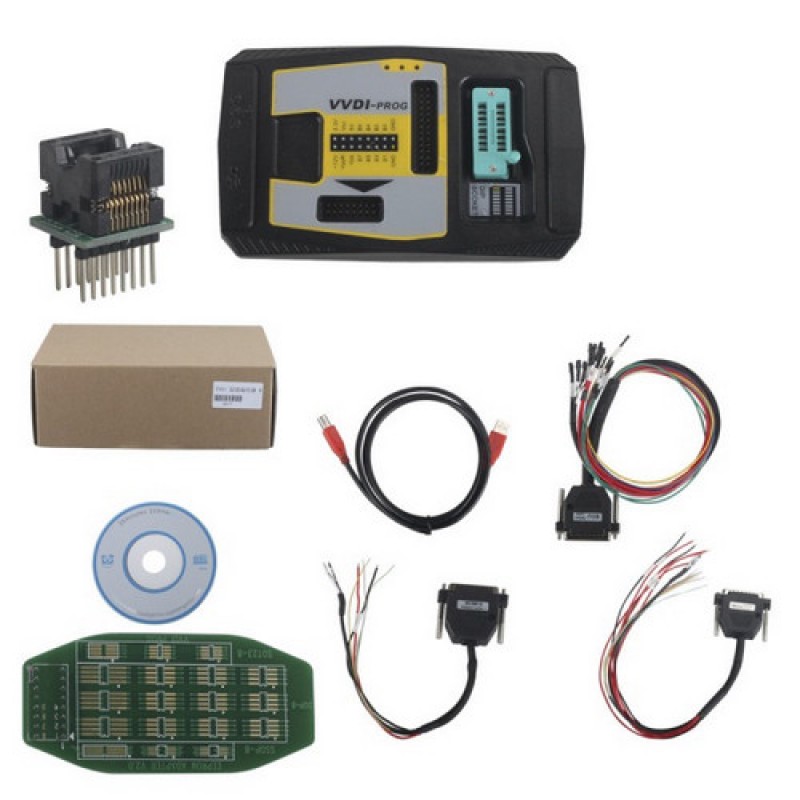

If you don't already own it, feel free to purchase it → Shop here!
