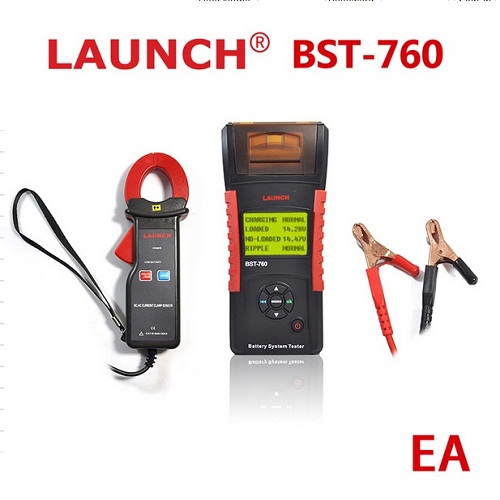

Original LAUNCH BST-760 Battery System Tester-EA

Product details
Launch battery system tester, with world's most advanced conductance testing technology, can easily, quickly and accurately measure the actual cold cranking current capability to judge the health status of the battery itself, and to detect common faults of both starting and generator charging systems, which help maintenance personnel to achieve quick repair to the vehicle trouble.

Feature
Product principle: Advanced conductance test technology

Scope
suitable for 6V & 12V battery system and 12V & 24V starting and charging system detects

Specification
1. The structure size : 110 * 240 * 50mm;
2. Shell ABS anti-acid plastic , soft rubber TPU corrosion-resistant package , two-color molding ;
3. 128 * 64 dot matrix , large backlit display screen (3 inches ) , adjustable brightness LCD display ;
4. The configuration of the 0-900A AC and DC current clamp ;
5. Built-in thermal printer , the test results can be printed out at any time ;
6. Can store 100 groups of test results data , ready at any time to view and print any of a group of test data ;
7. Test standards , including the most commonly used battery standard , such as CCA, BCI, CA, MCA, JIS, DIN, IEC , EN ,SAE , GB ;
8. Operating Temperature : -20-55  /-4-131
9. Language: English, Spanish, German, French and Italian, etc.

Product advantage
* Simple, secure , fast , and accurate display test results ( the test takes about 3 seconds)
* Eight lines with backlight LCD display and humane language prompted interface
* Does not emit light , no heat , no discharge , no spark , no operating dangerous
* Configuration 0-900A AC and DC current clamp
* Built - in thermal printer
* Can store 100 groups of test results
* Automatic temperature compensation function
* With ripple voltage test function
* Powerful auxiliary functions
* Multi- language menu display
* Replaceable test lines
* Dedicated Kelvin test clip

Advanced functionality
* Applicable to a variety of models, all kinds of batteries , and a variety of system mode
* Directly detected in the car , do not need t remove the battery
* Directly test the battery of the loss of electricity , bad cell battery
* Testable starting / charging current
* Advanced starter / alternator detection
* Powerful auxiliary functions
* View / Print
* Ammeter Function
* Thermometer
* QC mode
* License plate number input function
* Time and time format Adjustment
* User information input
* Display backlight brightness adjustment function
* Print sharpness adjustment
* Standby power function

Test criteria and scope
CCA 100-2000 (SAE & BCI to develop the standard most commonly used : the cold-start battery rating )
BCI 100-2000 ( international battery Committee standards )
CA 100-2000 ( when the effective starting current rating)
MCA 100-2000 ( ships standard effective starting current rating )
JIS 26A17 - 245H52 ( Japanese Industrial Standard)
Standard DIN 100-1400 ( German Automobile Industry Committee )
The IEC 100-1400 ( International Electrotechnical Commission standard )
EN 100-2000 ( European Automobile Manufacturers Association standards )
SAE 100-2000 ( U.S. Engineers Standard)
GB 100-1400 ( Chinese National Standard )
